As a custom electric wall bed manufacturer, we produce panel furniture based on client-supplied drawings, dimensions and technical requirements. For this project, our factory completed manufacturing feasibility review, panel processing, trial assembly, mechanism testing, quality inspection and export packaging.
For this customized furniture project, the client supplied the product drawings, main dimensions and functional layout of an electric fold-down wall bed.
As an OEM panel furniture manufacturer, our responsibility was to review the supplied information, convert the design into workable production details, manufacture the cabinet components, coordinate the electric bed mechanism, complete trial assembly and prepare the product for export delivery.
This project shows how we work with furniture importers, brands, wholesalers and project buyers who already have their own drawings, concepts or product specifications and need a reliable factory to complete production.
Project Overview
The product was designed as a full-height wall-mounted furniture system combining a fold-down bed with surrounding storage cabinets.
Based on the drawings supplied by the client, the approximate overall dimensions were:
- Overall width: 2065 mm
- Overall height: 2750 mm
- Cabinet depth: 580 mm
- Main bed section width: approximately 970 mm
- Additional side storage section: approximately 890 mm
The system included:
- An electric fold-down bed
- Upper storage cabinets
- A fixed side cabinet
- Integrated front panels
- Internal shelves and storage sections
- Electric lifting and folding hardware

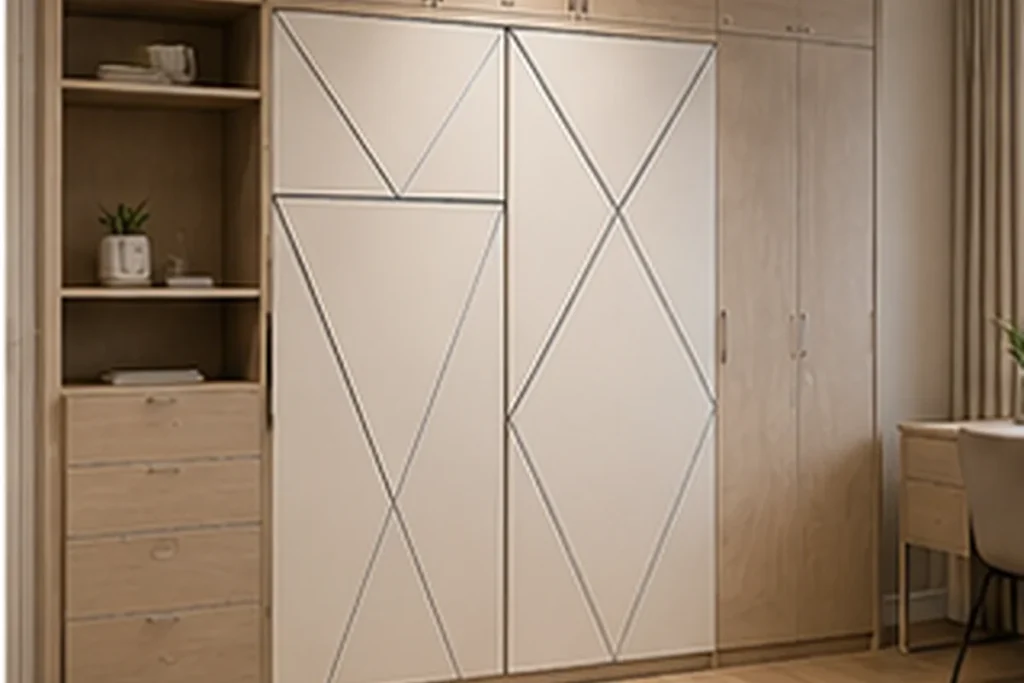

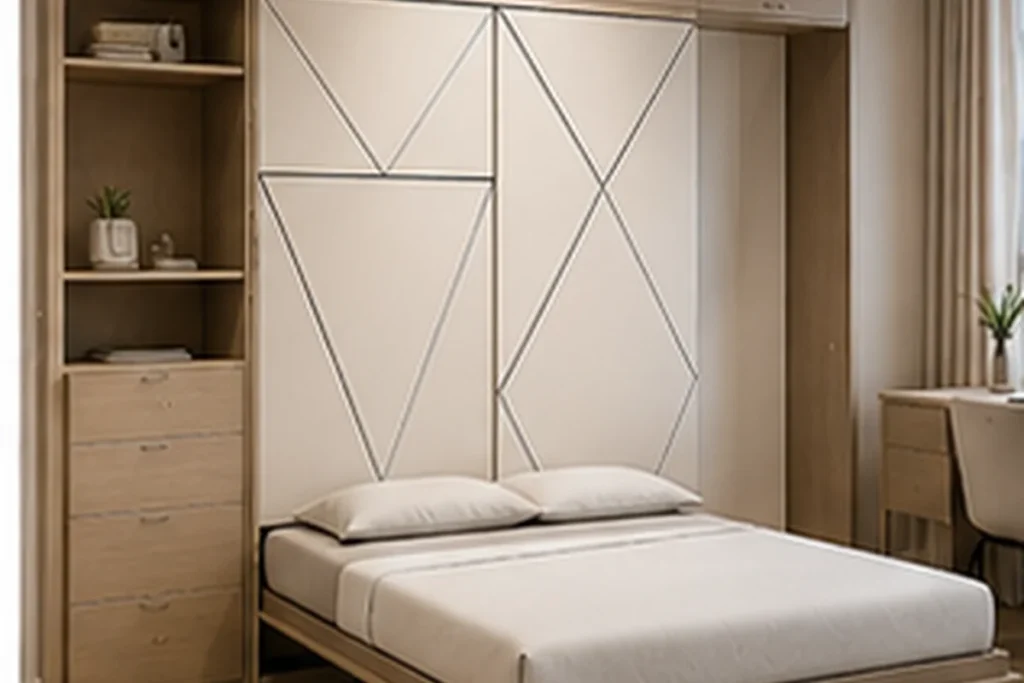

When closed, the bed forms part of the cabinet elevation. When opened, it provides a practical sleeping area without permanently occupying the available floor space.
This type of product is suitable for apartments, serviced apartments, student accommodation, staff housing, hotels, rental properties and multifunctional guest rooms.

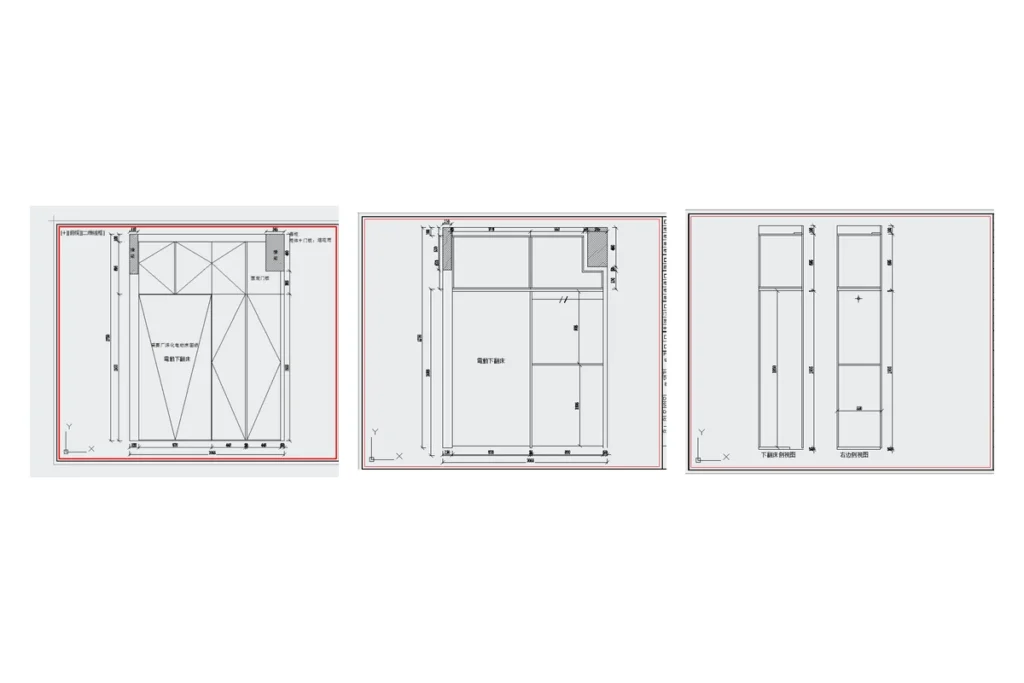

Information Supplied by the Client
The customer provided the main technical information required for the project, including:
- Front elevation drawings
- Internal structure drawings
- Side views
- Overall dimensions
- Cabinet and door divisions
- Bed opening direction
- Fixed cabinet positions
- Electric bed mechanism layout
For OEM furniture projects, the customer may also provide CAD files, PDF drawings, sketches, reference photos, samples, material requirements or hardware specifications.
Our role is to review whether the supplied design can be manufactured efficiently and consistently using panel furniture production processes.
Manufacturing Feasibility Review
Before quotation and production, our technical team reviewed the relationship between the cabinet structure, electric mechanism and individual panels.
The main points included:
Overall Structure
We checked whether the dimensions of the bed section, upper cabinets and side storage unit matched the total product dimensions shown in the drawings.
Panel Division
The cabinet was divided into individual boards and components suitable for panel cutting, edge banding, drilling, CNC machining and flat-pack packaging.
Bed Opening Clearance
The opening path of the fold-down bed needed to remain clear of the surrounding cabinet panels, floor, skirting and nearby furniture.
Structural Support
The electric bed mechanism creates additional forces during opening and closing. The side panels, connecting rails, fixing points and supporting components therefore needed to be reviewed carefully.
Hardware Positioning
The positions of brackets, connectors, hinges and electric mechanism components had to match the panel thickness and drilling layout.
Door and Panel Alignment
The front panel of the bed, upper cabinet doors and fixed side cabinet doors needed to maintain consistent gaps and aligned horizontal lines.
Electrical Arrangement
The technical review also considered motor installation, controller position, power cable routing and future maintenance access.
On-Site Installation
Wall conditions, floor level, skirting clearance, fixing methods and installation sequence were considered before production preparation.
Confirming these details at an early stage helps reduce adjustment work during factory assembly and final installation.
Details Confirmed Before Production
For customized manufacturing, drawings alone may not include every detail required for production.
Before placing the project into manufacturing, the following specifications normally need to be confirmed with the customer:
- Board material
- Panel thickness
- Surface finish
- Edge-banding specification
- Product color
- Mattress dimensions
- Electric mechanism model
- Motor voltage
- Hardware brand or quality level
- Handle design
- Cabinet internal arrangement
- Installation method
- Order quantity
- Carton requirements
- Product labels
- Assembly instructions
- Destination market requirements
Once the main specifications are confirmed, we can prepare the bill of materials, cutting list, panel drawings and production documentation.
From Client Drawing to Production Documents
The customer’s drawings define the required product appearance, dimensions and functions.
Our production team converts this information into manufacturing documents, including:
- Individual panel dimensions
- Panel identification numbers
- Cutting lists
- Edge-banding positions
- Drilling coordinates
- CNC machining details
- Connector positions
- Hardware lists
- Assembly sequences
- Packing groups
- Carton identification
This step is especially important for an electric wall bed because the cabinet structure and moving mechanism must work together accurately.
Incorrect panel dimensions, hole positions or mechanism locations may affect the opening movement, cabinet alignment or installation result.
Panel Furniture Manufacturing Process
After the drawings and specifications were approved, the project entered the manufacturing stage.
1. Material Preparation
Boards, edge-banding materials, hardware, electric components, connectors and packaging materials were prepared according to the confirmed production requirements.
2. Panel Cutting
Large boards were cut into individual cabinet components based on the approved cutting list.
Accurate cutting helps maintain cabinet squareness and consistent gaps during assembly.

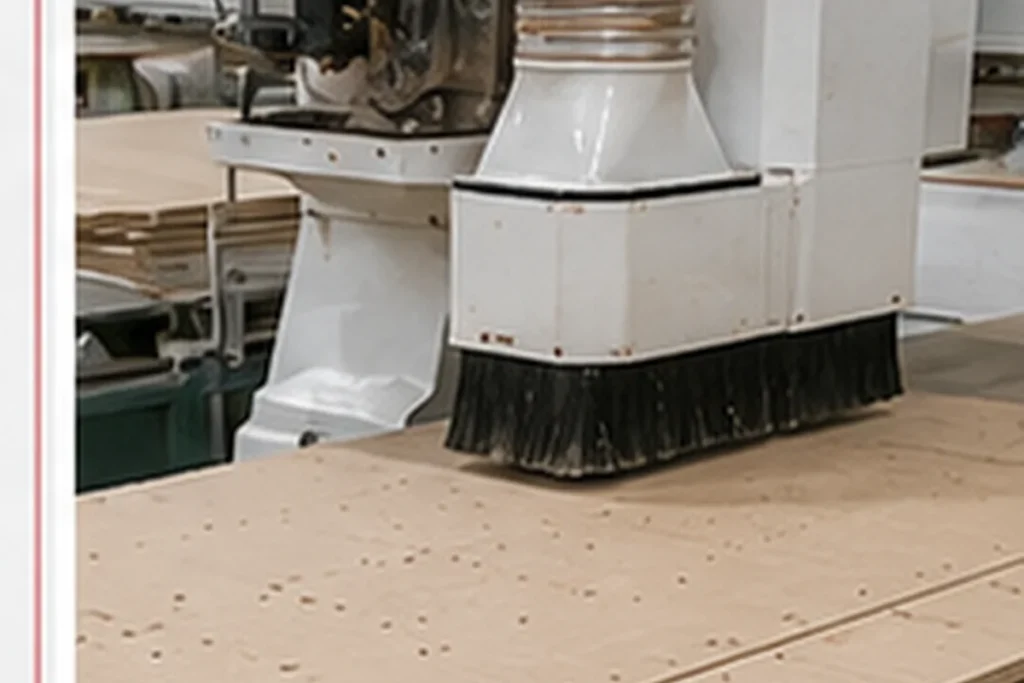

3. CNC Machining
CNC equipment was used for grooves, recesses, special shapes and structural processing required by the cabinet and electric bed system.
4. Edge Banding
Visible panel edges were sealed to improve appearance and protect the boards during daily use, transportation and installation.
5. Precision Drilling
Holes were processed for cabinet connectors, hinges, brackets, shelves and electric mechanism components.
The drilling positions needed to remain consistent with the approved panel drawings.
6. Hardware Preparation
Furniture hardware and electric components were organized according to the bed section, upper cabinets and fixed side cabinet.
7. Component Identification
Each board and hardware package was labeled according to its position and assembly sequence.
This helps improve factory assembly efficiency and makes installation easier for the customer.

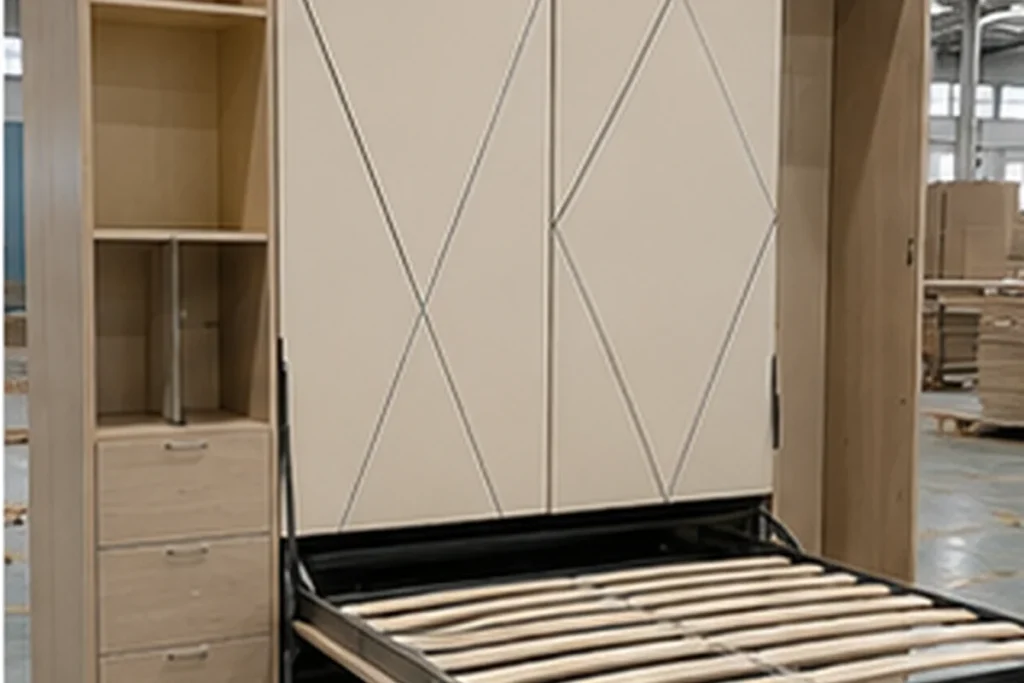

Factory Trial Assembly
Before export packing, the main product structure was pre-assembled in the factory.
Trial assembly allowed our team to check:
- Overall cabinet dimensions
- Cabinet squareness
- Panel connection accuracy
- Front panel alignment
- Door gaps
- Upper cabinet alignment
- Side cabinet position
- Mechanism installation
- Bed opening clearance
- Hardware compatibility
For customized furniture, trial assembly is an important step because it allows potential dimensional or installation issues to be identified before the product is shipped.

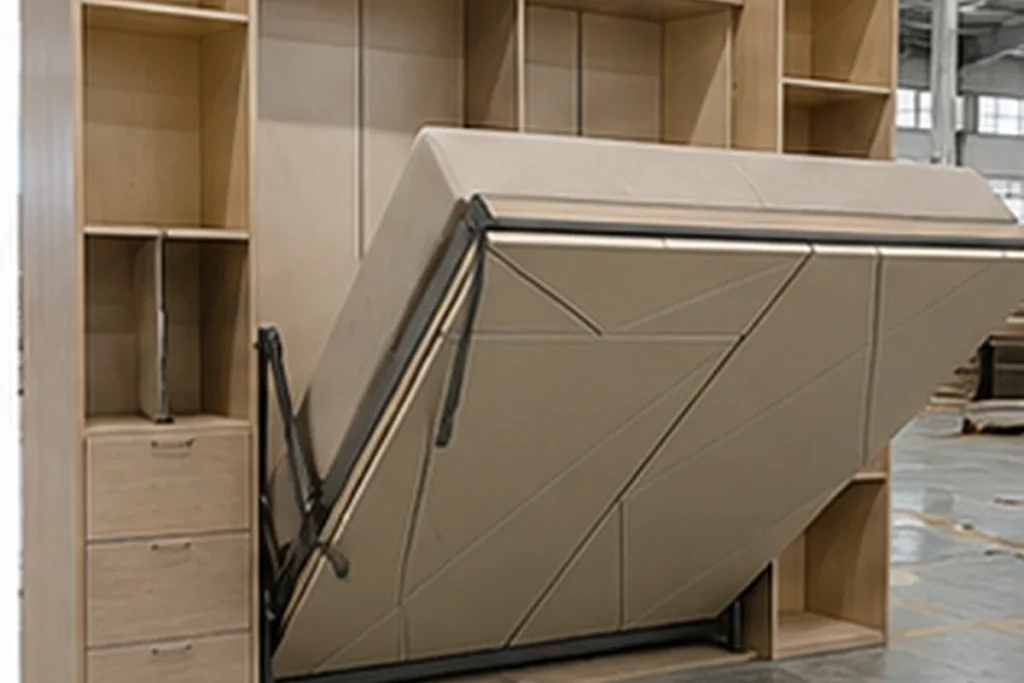

Electric Mechanism Testing
The electric fold-down function was one of the main inspection points of this project.
During functional testing, the team checked:
- Opening and closing movement
- Motor operation
- Left and right movement balance
- Bracket installation
- Structural stability
- Panel clearance
- Closed-position alignment
- Cable routing
- Hardware tightness
- Controller operation
- Maintenance access
The mechanism was operated repeatedly during the inspection stage to confirm that the bed could open and close without interfering with the surrounding cabinet structure.
Any required adjustment to the bracket position, panel clearance or connecting structure was completed before packing.

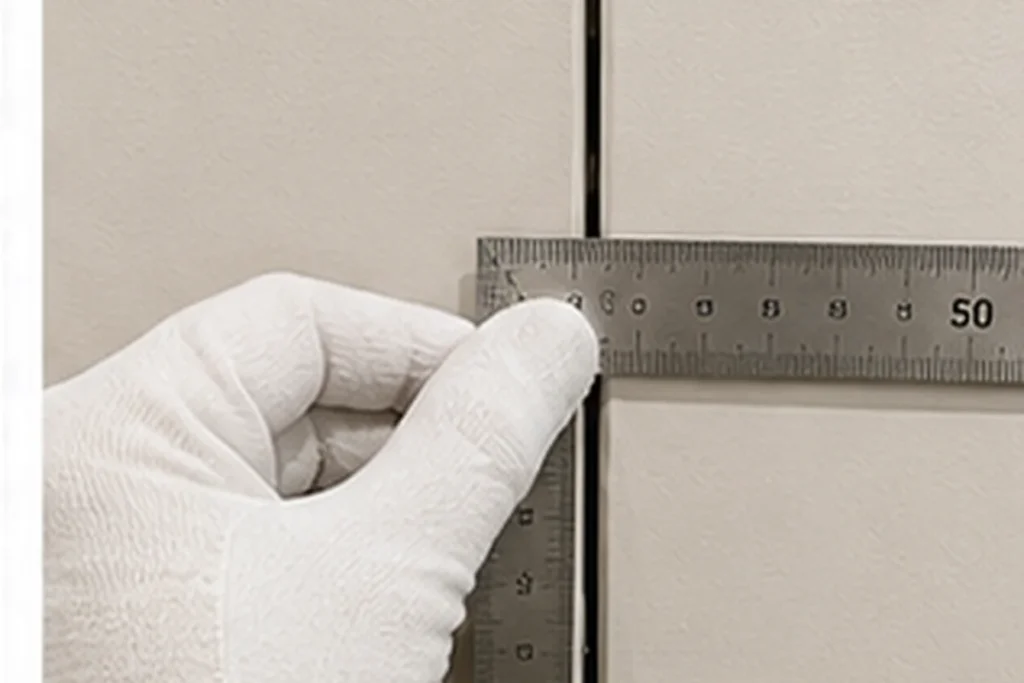

Quality Control
Quality control was carried out during panel processing, assembly and final packing.
The main inspection points included:
- Overall product dimensions
- Individual panel dimensions
- Panel surface condition
- Color and texture consistency
- Edge-banding adhesion
- Edge-banding appearance
- Drilling accuracy
- CNC machining details
- Panel flatness
- Cabinet squareness
- Door and panel alignment
- Hardware matching
- Electric mechanism operation
- Accessory quantity
- Product labeling
- Carton identification
For furniture manufactured from client drawings, dimensional accuracy and accessory completeness are particularly important.
Replacement parts or modifications after international delivery can increase installation time and project costs, so uncertain details should be confirmed before the product moves to the next production stage.

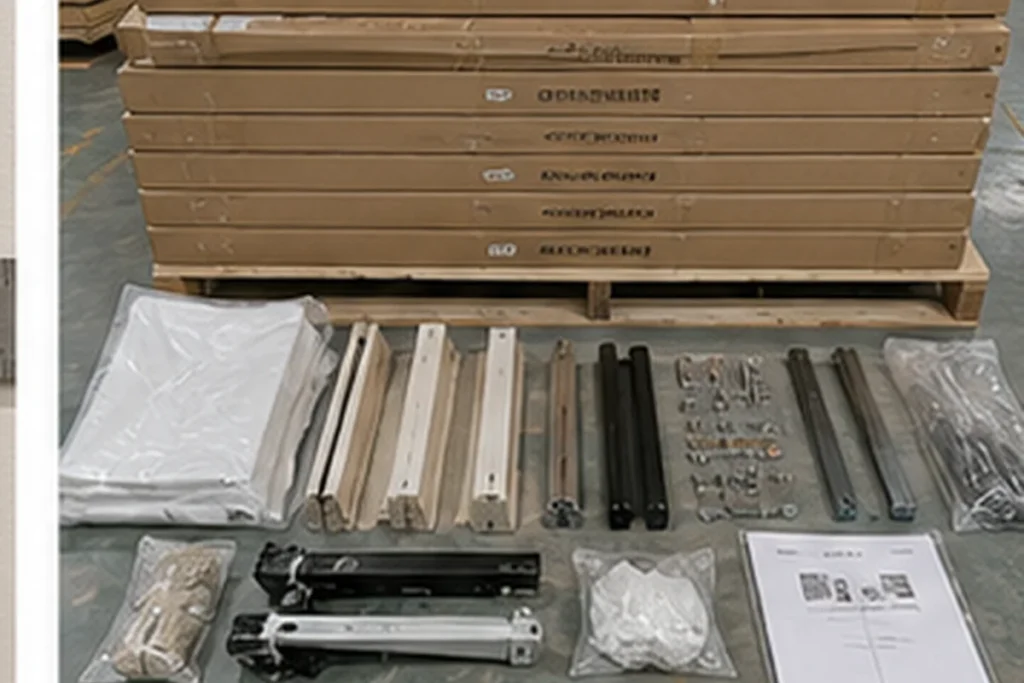

Export Packaging
The electric wall bed system was prepared as separate cabinet and panel groups for transportation and installation.
Depending on the customer’s requirements, the packaging arrangement can include:
- Flat-packed panels
- Surface protection materials
- Foam protection
- Corner protectors
- Reinforced export cartons
- Separate hardware boxes
- Protected electric components
- Numbered panel labels
- Hardware identification
- Carton numbers
- Assembly drawings
- Installation instructions
The panels and accessories can be organized according to different product sections, such as:
- Electric bed module
- Upper cabinet module
- Fixed side cabinet
- Hardware package
- Electric component package
Clear identification helps the importer, warehouse team and installation contractor find the correct components more efficiently.
Project Result
Through technical review, production preparation, panel processing, trial assembly and functional testing, the customer’s drawings were converted into a manufacturable electric fold-down wall bed system.
The value of this project was not limited to producing individual boards.
The complete OEM manufacturing service included:
- Review of client-supplied drawings
- Manufacturing feasibility checking
- Panel breakdown
- Production document preparation
- Material coordination
- Hardware coordination
- CNC panel processing
- Factory trial assembly
- Electric mechanism testing
- Quality inspection
- Export packaging preparation
The customer retained control of the product concept, dimensions and market positioning, while our factory focused on converting the supplied design into a stable and repeatable production solution.
OEM Furniture Manufacturing Based on Your Drawings
We manufacture customized panel furniture for:
- Furniture importers
- Furniture wholesalers
- Private-label brands
- Online furniture sellers
- Property developers
- Hotel furniture buyers
- Apartment project contractors
- Commercial furniture distributors
Customers can send us:
- CAD drawings
- PDF drawings
- Product sketches
- Floor plans
- Cabinet elevations
- Reference photographs
- Existing product samples
- Material requirements
- Finish specifications
- Hardware requirements
- Target prices
- Packaging requirements
Our team can assist with manufacturing feasibility review, material selection, structure optimization, sampling, mass production, quality inspection and export packaging.
Have a Custom Furniture Project?
Send us your drawings, dimensions, product photos or technical requirements.
We will review the panel structure, materials, hardware, production process, packaging method and manufacturing feasibility before providing a quotation.
Frequently Asked Questions
Can you manufacture electric wall beds from client-supplied drawings?
Yes. We manufacture custom electric wall beds and other panel furniture based on client-supplied CAD drawings, PDF files, dimensions, sketches, reference images or physical samples. Before production, our team reviews the product structure, panel specifications, hardware positions and manufacturing feasibility.
What information should we provide for a custom wall bed quotation?
Please provide the product drawings, overall dimensions, required quantity, board material, surface finish, hardware requirements, electrical specifications, packaging method and destination market. If some details have not yet been confirmed, we can review the available information and identify the points that require clarification.
Do you provide product design services?
Our main service is OEM manufacturing based on drawings or product information supplied by the client. We can review manufacturing feasibility, optimize panel divisions and confirm production details. Complete original product design or engineering development can be discussed separately according to the project requirements.
What materials can be used for an electric wall bed?
Material options may include melamine-faced particle board, MDF, plywood and other laminated panels. The final specification depends on the required appearance, structural performance, screw-holding strength, target price, packaging method and destination-market requirements.
Can you source the electric mechanism and furniture hardware?
Yes. Electric mechanisms, brackets, connectors and furniture hardware can be sourced according to the approved structure and customer requirements. The motor voltage, mechanism model, load requirement, controller type and installation position should be confirmed before production.
Do you conduct trial assembly before shipment?
Yes. For customized wall bed projects, the main cabinet and folding structure can be trial assembled in our factory. We check the cabinet dimensions, panel alignment, opening clearance, structural stability, mechanism installation and hardware compatibility before export packaging.
How do you test the electric fold-down mechanism?
The mechanism is checked for smooth opening and closing, movement balance, bracket installation, panel clearance, motor operation, cable routing, structural stability and closed-position alignment. Any necessary adjustments are completed before final packing.
How are custom electric wall beds packed for export?
The product can be supplied in flat-pack or modular packaging. Panels, hardware and electrical components are protected and labeled separately. Carton numbers, panel identification and assembly information can be provided according to the confirmed packaging requirements.
What is the minimum order quantity for a custom wall bed?
The minimum order quantity depends on the product dimensions, materials, finishes, electric mechanism, packaging requirements and level of customization. Please send us the required quantity and project information so that we can evaluate the appropriate production arrangement.
Can you manufacture other panel furniture from customer drawings?
Yes. In addition to electric wall beds, we manufacture wardrobes, cabinets, bedroom furniture, storage furniture and other panel furniture based on customer drawings, reference products and technical requirements for importers, wholesalers, furniture brands and project buyers.
